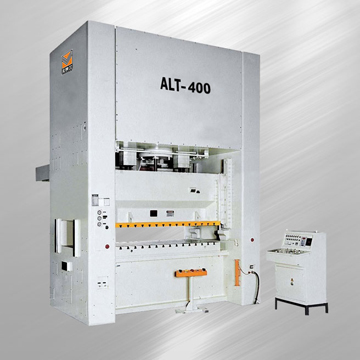

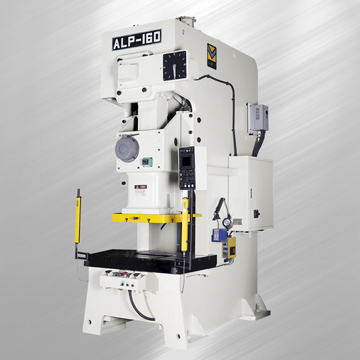

Product description:

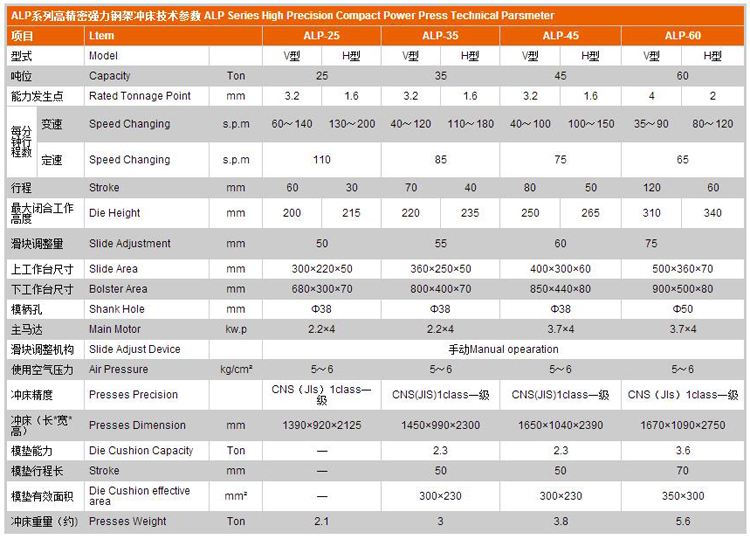

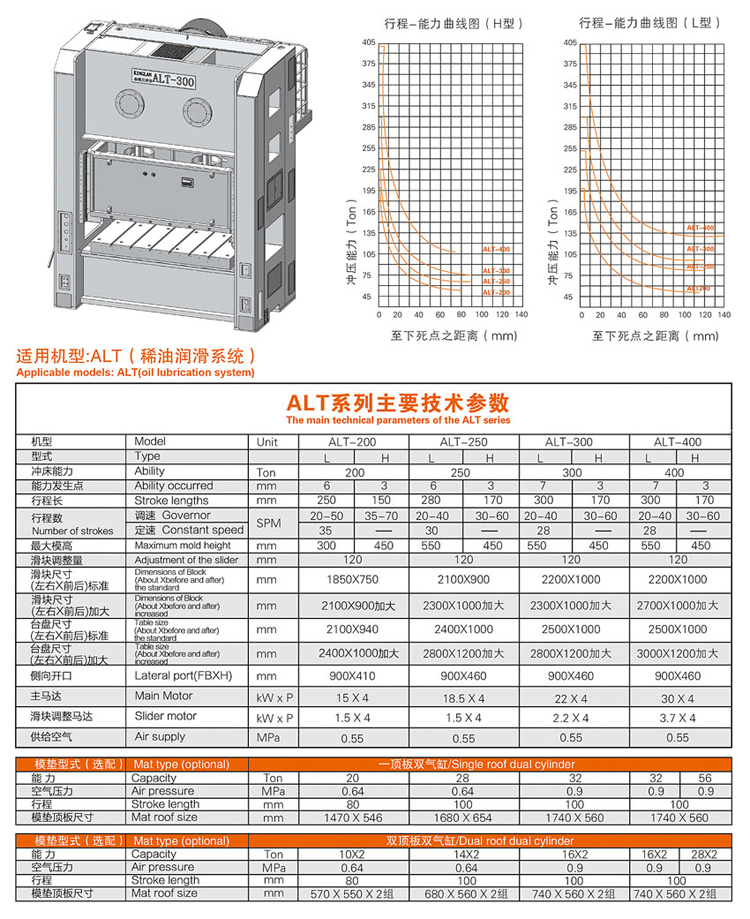

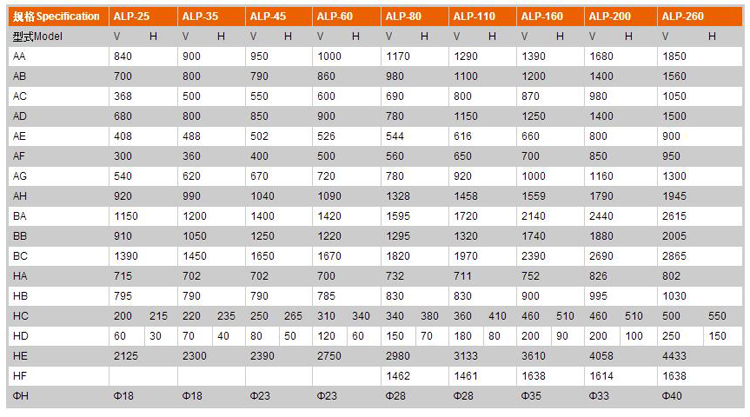

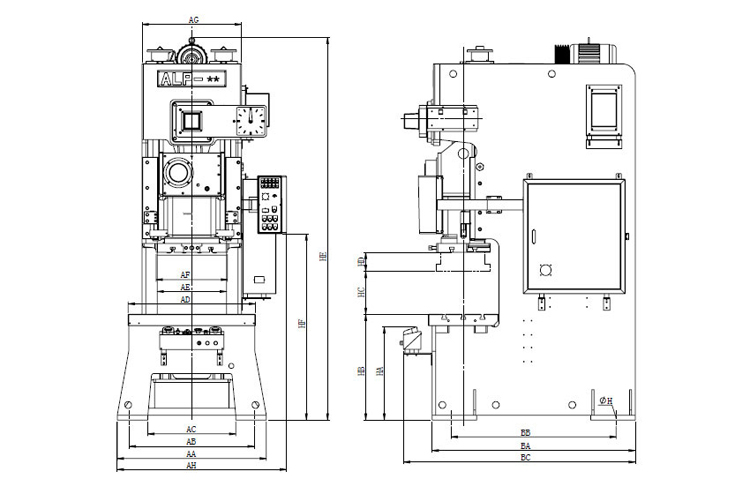

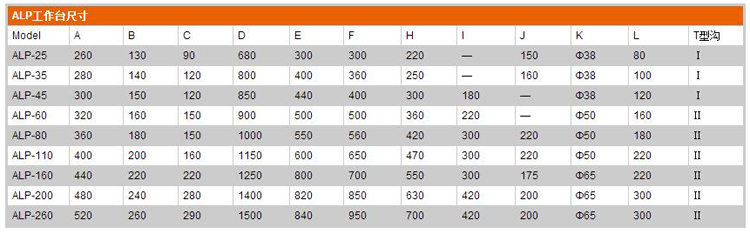

Product parameters:
Features and applications:
Wide range of applications

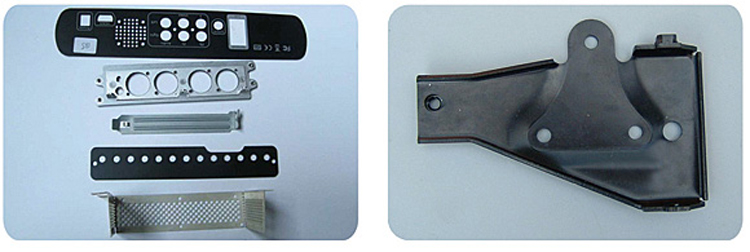

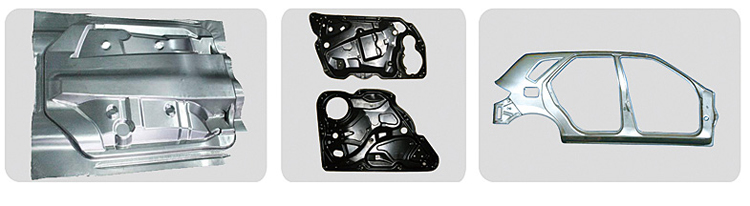

Widely used in a variety of sheet metal processing production of metal-style punching, forming, extension, bending and other multi-purpose processing. Such as transport vehicles, the kind of form, home appliances, stationery, hand tools, hardware, computers, precision electronics, electrical components, medical equipment and other products processing. Automatic feeder can be installed at the same time, in the automatic transfer of the entire production line process.
main feature
1.The main body portion of the press welded steel plate or steel plate welded overall split structure of the fuselage structure, split structure of the top seat, middle body, the base by four reinforcing rods pretension which consists of one, with high just set body.
2.The press may be eccentric gear, transmission stability, low noise.
3.In the four corners of the octahedron using guide rails guide path length, small lateral forces and high precision.

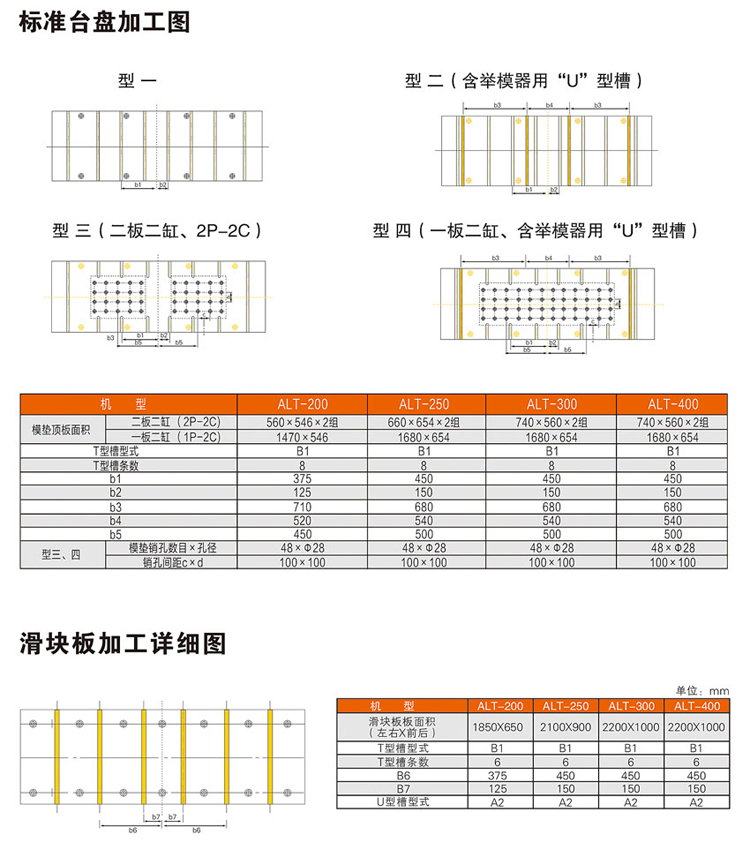

4.The bench press can choose fixed or forward out, back out, and left and right out of the "T" to move other forms, the user can select according to the specific conditions of arrangement, stand-alone or production line . Mobile trolley easy to change mold quickly.
5.press die pad can be fixed air cushion stroke or stroke adjustable to meet a variety of complex structure, parts need light stretching process requirements.
6.press automatic lubrication system uses a circulatory system, a continuous location, quantitative approach to oil, with a pipe blockage, rupture, lack of fuel, such as failure detection means.

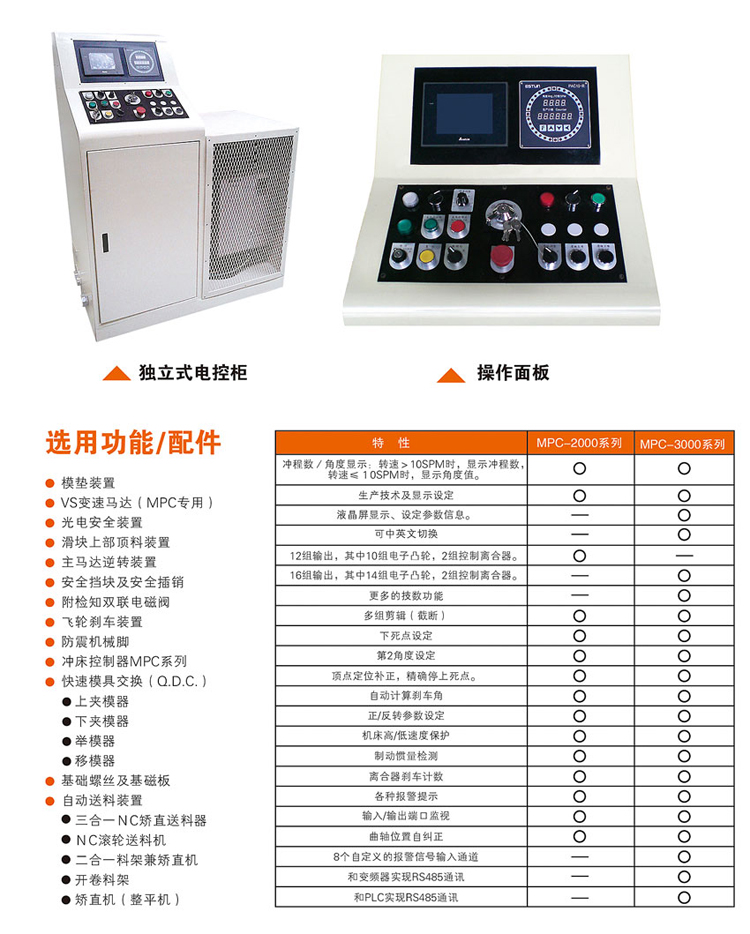

7.press electrical control system programmable (PLC) control system that allows the beginning of the electronic cam brake angle monitoring and display, monitor pressure tonnage display and other functions controlled by PLC to achieve.
