Product description:

7.press electrical control system programmable (PLC) control system that allows the beginning of the electronic cam brake angle monitoring and display, pressure monitoring, Ⅱ Tuen digit display and other functions controlled by PLC to achieve.T2 series

Feature

1.The main body portion of the press welded steel plate or steel plate welded overall split structure of the fuselage structure, split structure of the top seat, middle body, the base by four reinforcing rods pretension which consists of one, with high rigid body station.

2.The press may be eccentric gear, transmission stability, low noise.

3.In the four corners of the octahedron using guide rails guide path length, small lateral forces and high precision.

4.The press die pad can be fixed air cushion stroke or stroke adjustable to meet a variety of complex structure, process requirements need to position shallow stretch parts.

5.The bench press can choose fixed or forward out, back out, and left and right out of the "T" and other forms of mobile users based on device layout. Specific conditions for stand-alone or production lines at their discretion. Mobile trolley easy to change mold quickly.

6.press automatic lubrication system uses a circulatory system, a continuous location, quantitative approach to oil, with a pipe blockage, rupture, lack of fuel, such as failure detection means.

Product parameters:

T1 series closed single-point mechanical presses 200-800 Ton

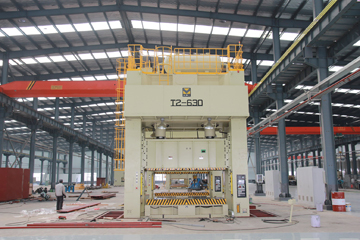

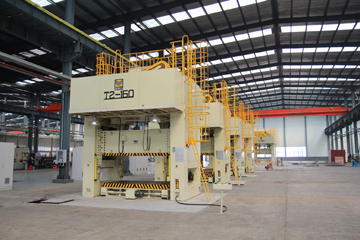

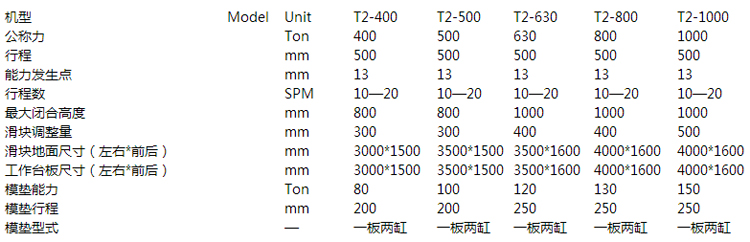

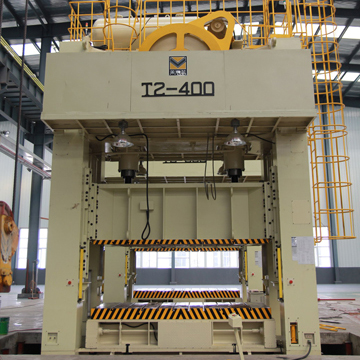

T2 series of closed two-point mechanical presses 400-1000 Ton

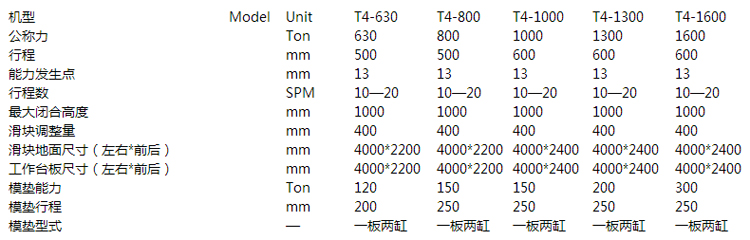

T4 series of closed four-point mechanical press 630-1600Ton
