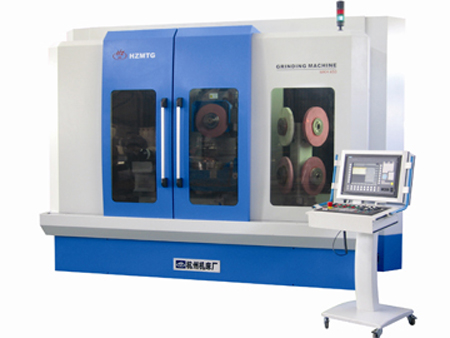

The machine is mainly used for grinding aero-engine blades and gas turbine blades.

Function features

■Multi-surface and multi-process manufacturing of the blades in one-time clamping

■Automatic change of the grinding wheel, six grinding wheel can be installed in the grinding wheel magazine.

■AE function: spindle anti-collision and empty travel elimination function.

■Automatic update the parameters of six grinding wheels

■Manufacturing function of coordinated control of five-axis

■Coolant nozzle automatically adjusting with the grinding wheel dressing

■Grinding wheel constant linear speed control

Construction features

■Column-moving principle, small occupied area

■Turret grinding magazine

■Double leadscrews and double servomotors for Z-axis

■Unique spindle construction to realize automatic change of the grinding wheel

■Grinding wheel dressing center，installing the max. width of the roller up to 240mm.

■Full-closed loop system for X, Y, Z, A and B axes

■Preloaded high precision linear rolling guideway and high precision ball leadscrew driven mode for X, Y and Z axes

■SIMENS 840D CNC system for nine axes to realize single axis control or coordinated control of X, Y, Z2, W, A, B, C and SP axes.
