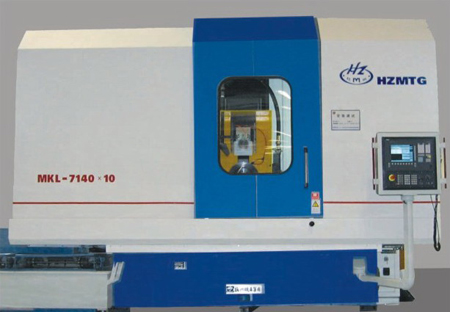

The machine adopts initiative moving principle in the middle of the column with independent intellectual property. It adopts advanced creepfeed profile grinding technology and the workpieces can be formed directly from blank.

Features

■Domestic initiative structure of cross guideways with independent intellectual property

■ High feed sensitivity and processing accuracy of the guideways of X, Y and Z axes.

■The machine adopts Siemens 802D/810D/840D CNC system. It also has the compensation function of linear interpolation and arc interpolation.

■High positioning accuracy and re-positioning accuracy

■Varied profile dressing technology such as table diamond roller dressing, diamond pen or disc dressing through the coordinated control of Y and Z axes, continuous dressing of top-mounted diamond roller (CD).

■High speed ball leadscrews can be equipped for the longitudinal movement

■Fully-enclosed construction of the machine grinding area

■Comply with safety standards
