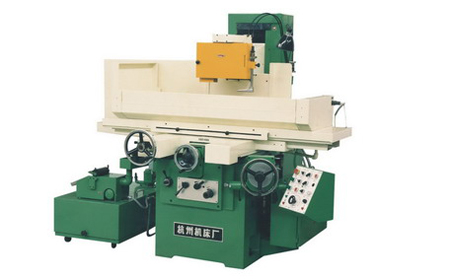

The machine adopts mainly the wheel periphery for surface grinding, and the wheel end surfaces can also be used for grinding grooves and the sides of projections.

Features

■Cross table layout principle, new structure of hydraulic system, table longitudinal movement driven by two oil cylinders.

■Saddle cross feed driven by oil motor and ball leadscrew pair.

■Wheelhead spindle adopts precision rolling bearings.

■Hydraulic grinding wheel dresser.

■Integrated circuit, PLC control.

■Compact structure, small floor area.




The above information are subject to change without notice.
