Gantry Surface and Guideway Grinder series, are the important equipments for precision processing of the basic parts of machine, with the advantages of fine rigidity and large processing range, suitable for final grinding processing of large parts of such industries as machine tool, die mold, textile machinery, printing machinery and automobile and military industry as well as final processing of machine tool guideway, able to make peripheral grinding for the main guideway surface through the automatic, manual (electronic hand wheel) control, as well as grinding for other planes.

The Gantry Surface Grinder series have the following features:

1. The machines employ gantry structure principle that a bed, double columns and a crossrail compose a closed rigid frame. The bed and worktable adopt V-type self-positioning guideways（HZ-K2010 adopts flat-Vguideways）, and the worktable guideways are coated with Teflon.

2.The wheelhead moves up and down along the vertical guideways of the carriage, which move transversely along the crossrail. The worktable is driven to move longitudinally by hydraulic drive, ensuring steady movement, stepless speed regulation with an oil-cooling device.

3.The vertical feed and horizontal feed of wheelhead and the dress feed of grinding wheelhead all driven by AC Servo System. Each feed shaft can feed rapidly as well as feed intermittently.

4.Both the program-controlled automatic grinding cycle and the electric-handwheel controlled manual grinding can be carried out.

5.The modular design can add the following functions according to users’ special demands: CNC shaft closed-loop control , grinding wheel online dynamic balance, etc.

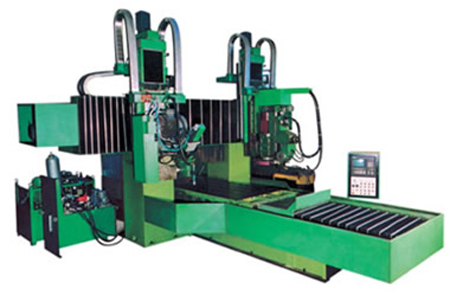

The Gantry Guideway Grinders series have the following features:

1. The machines employ gantry structure principle that a bed, double columns and a crossrail compose a closed rigid frame. The bed and worktable adopt V-type self-positioning guideways（HZ-KD2010 adopts flat-V guideways）, and the worktable guideways are coated with Teflon.

2.There are two carriages on the cross rail, respectively for horizontal spindle grinding wheelhead and universal spindle grinding wheelhead. The two grinding wheelhead respectively move up and down along the carriages, which move transversely along the crossrail. Both horizontal spindle grinding wheelhead and universal spindle grinding wheelhead equipped with grinding wheel dressers.

3.The worktable is driven to move longitudinally by hydraulic drive, ensuring steady movement, stepless speed regulation with an oil-cooling device.

4.The vertical feed, horizontal feed and the grinding wheelhead dresser feed movement of horizontal spindle grinding wheelhead and the vertical feed, horizontal feed and the rotary-indexing movement all driven by AC Servo System. Each feed shaft can feed rapidly as well as feed intermittently.

5. Both the program-controlled automatic grinding cycle and the electric-handwheel controlled manual grinding can be carried out.

6. The modular design can add the following functions according to users’ special demands: CNC shaft closed-loop control , grinding wheel online dynamic balance, concave-convex grinding functions, etc.

So far, the output of this machine series produced by our company has reached more than 100. There are such typical users as manufacturers of Machine Tool industry, including Shenyang Manchine Tool Group, Wuhan Heavy-duty Machine Tool Group, Dalian Machine Tool Group, Qinchuang Machine Tool Works, Guangdong Forging Machine Tool No. 1 Factory, Beijing No.1 Machine Tool Factory, Jinan No.2 Machine Tool Factory, Qinghai No.2 Machine Tool Factory, Zigong Long-march Machine Tool Factory, Beijing A Qi, etc., companies of Die and Mould  industry, including Plastic Limited Company of Sichuang Wuliangye Group, Fujian Furi Colour Picture Tube Limited Company, Guangdong Midea Group, Guangdong Gree Group, Qingdao Hisense Group, Qingdao Hai’er Group, Guangdong Shunde Xunfa Ceramic Machinery Plant, Shandong Jiangquan Group Co., Ltd, Zhejiang Die and Mould Factory, etc. and other enterprises of other industries, including Shenyang Hongda Textile Machinery Co., Ltd, Ningbo Haitian Plastic Machine Manufacturing Co., Ltd, Inner Mongolia No.1 Machinery Factory, Shandong No.2 Machinery Factory, Shanghai Electric Factory, etc.
