Functions:

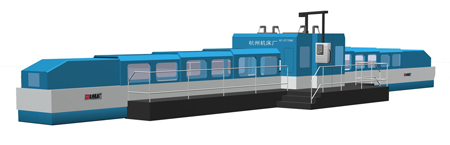

The machines are designed for grinding conventional guideway, heavy-duty guideway and roller guideway products with high accuracy, able to grind the precision linear guideway with specification ranging from 15 to 125mm.. The machines employ tangential grinding technique, diamond roller forming dresser wheel, double vertical form grinding rail body raceway and two sides, and have the function of compensation for grinding wheel dressing amount in order to keep the consistency of grinding size. Horizontal wheelhead is applied to grind the base plane of guideway and arc surface in the plane of the heavy-duty guideway.

Applicable Industries:

Widely used for Linear Rolling Guideway Manufacturing which is one of the functional workpieces.

Key Users:

Shandong Bote Fine Working Co., Ltd,  Nanjing Process Equipment Manufacturer, Shanghai Zhongheng Guideway Limited Company, Ningbo Anxin CNC Technology Limited Company( Ningbo Haitian Machinery Limited Company), Zhejiang Sikaite Precision Mahinery Limited Company,, Shandong Gaotang Huatong Hydraulic Mechinery Limited Company, Zhejiang Xinyite Automation Limited Company, Jiangyin Yuyu Machinery Limited Company, etc.

The main technical parameters:

1. Linear guide width can be processed:  20mm～150mm

2. The maxium grinding length: 3m / 4m / 6m

3. The main power of the wheelhead: 15kW / 22kW / 30kW
