Product Introduction

General technical description of IA5B-series

Complete machine framing in cast-iron design with ball screws /Gantry drive in vertical axis 1 Vertical axis with safety brakes /Enclosure with optimal chip evacuation and coolant recirculation /Screw conveyors in the chip channels of bed /Slatband conveyor /Central lubrication of machine / SINUMERIK 840 D Control (Siemens).

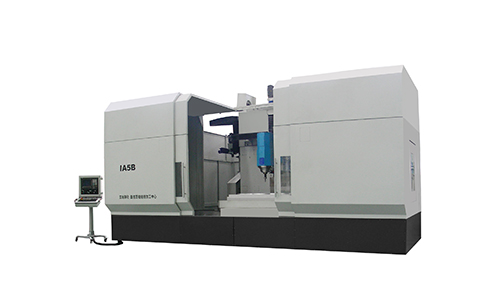

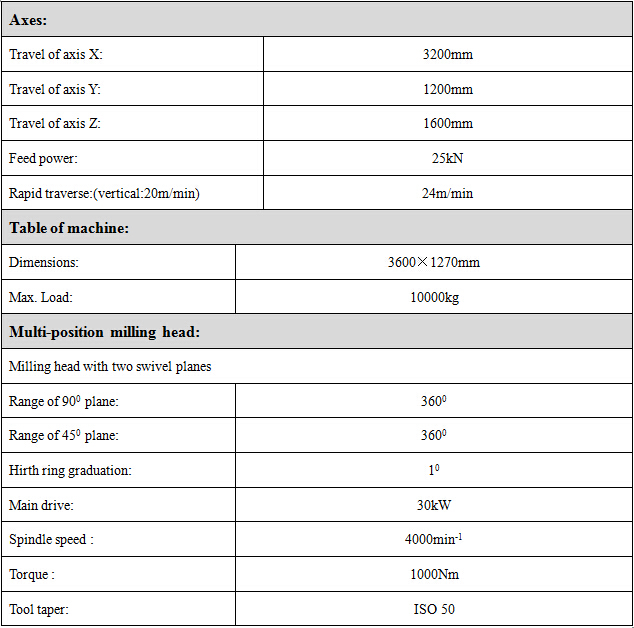

1A5B 3200

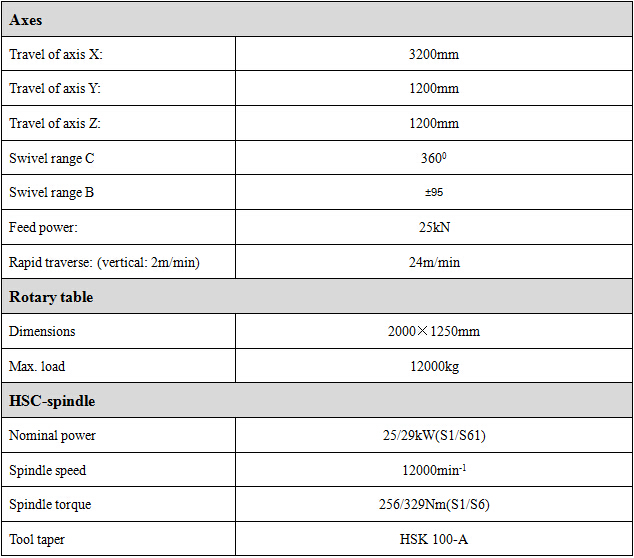

IA5B 3200 HSC-RT
