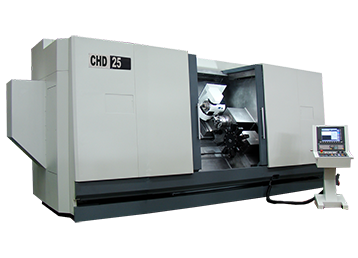

Product Introduction

The travel of X1 axis: 520mm The travel of Z1 axis: 1180mm

The travel of Y axis: ± 105mm Rotary angle of B axis: ± 102.5°

Rapid traverse of upper carriage (X1 I Y I Z1): 24/16/30 m/min

Max turning diameter of upper carriage: 500mm

Tool shank of upper carriage: Capto C6

Tools in the magazine: 30 tools

Motor power of 2nd spindle: 14.5/18.7Kw

Max. Speed of 2nd spindle: 5000r/min

Spindle bore taper of 2nd spindle: metric 100

Rapid traverse of 2nd spindle: 24m/min

Travel of Z3 axis: 1020mm

Travel of X2:220mm   Travel of Z2:1100mm

Rapid traverse of lower carriage: (X2/Z2): 24124 m/min

Max turning diameter of lower carriage: 330mm

Old tool shank of lower carriage: 25 x 25

Max.Swing over bed:1000mm

Max. Part length: 1000mm

Max. Machining length: 1500mm

The Control available: siemens840D

Machine overall dimension: 7230 x 3150 x 3755mm

Machine weight: 15000kg

Max.Speed of 1stspindle :5000r/min

Motor power of 1 st spindle: 18.3122.4 Kw

Spindle bore taper of 1st spindle: metric 100

Spindle nose: ISO A2-8

Spindle through-hole dia.: 80mm
